In a browser

Every device has its own web page. Open its address in a browser on the same network:

https://192.168.1.50/

The plain http:// address sends the browser on to it.

Signing in

The page asks for the admin password. The device makes one up the first time it starts. On an Echo Show, find it under Settings → Network & internet → Web access, along with the address. On the Echo Dot, read it from the Admin password entity in Home Assistant. Tap the eye to show it, or type a new one there. The same password is the Admin password (frontend_password) entity in Home Assistant, hidden until you reveal it.

A sign-in lasts 30 days and renews itself while you use the page. Changing the password signs every browser out. After five wrong passwords in ten minutes, the page stops accepting tries from that browser’s address for a while.

Scripts sign in too; see the API.

The certificate

Out of the box the device uses a certificate it made itself, so the browser warns that the connection isn’t private the first time. Accept it once and the warning stays away for that browser.

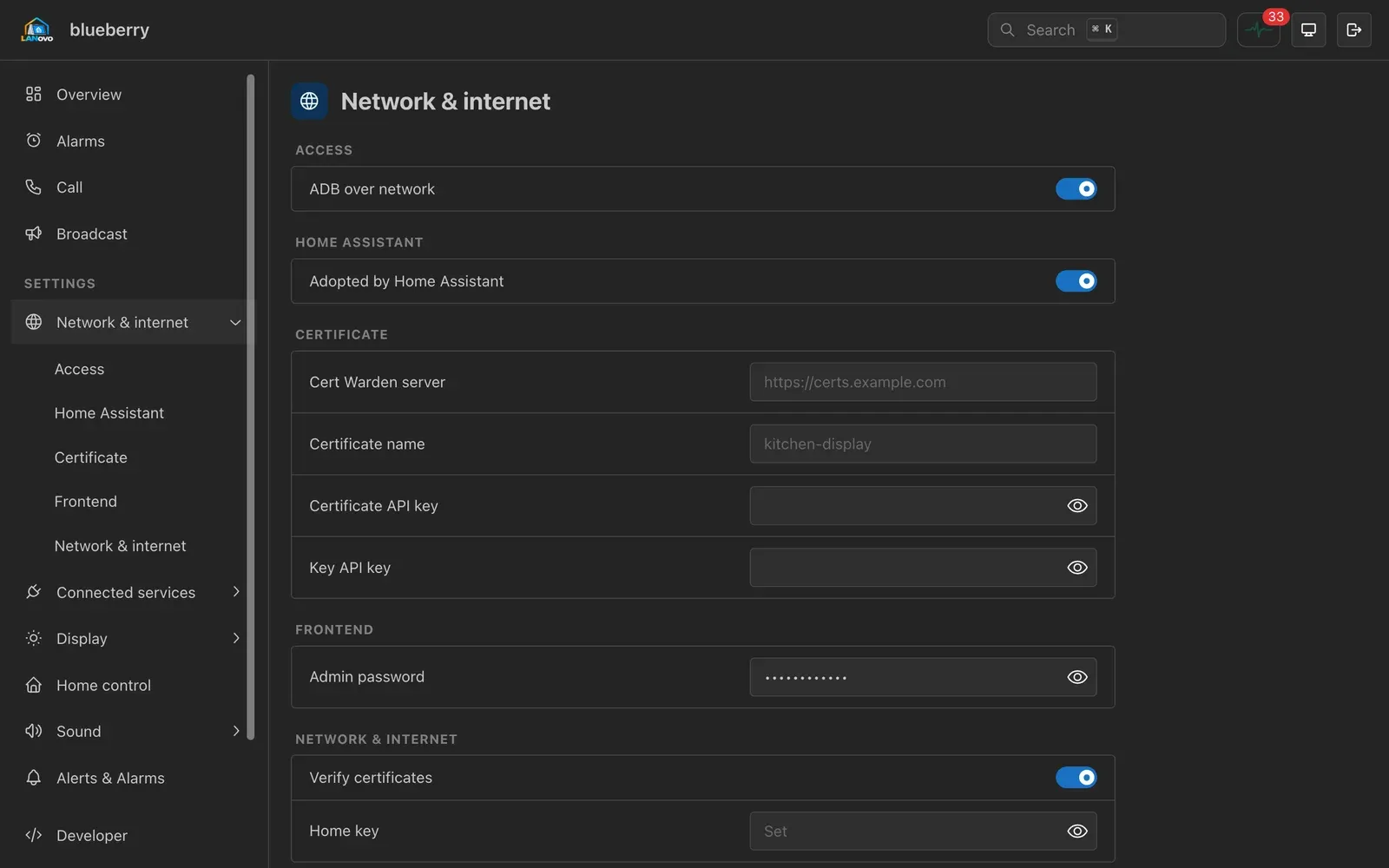

To get rid of the warning, give the device a real certificate from Cert Warden. Set these on the Network & internet page in the browser, or in Home Assistant:

Setting	What it is	Entity
Cert Warden server	Cert Warden’s address, like https://certs.example.com. A bare host name means https://	text.<device>_frontend_cert_warden_server
Certificate name	The certificate’s name in Cert Warden	text.<device>_frontend_cert_warden_certificate_name
Certificate API key	The certificate’s API key	text.<device>_frontend_cert_warden_certificate_api_key
Key API key	The private key’s API key	text.<device>_frontend_cert_warden_key_api_key

The Certificate sensor (certificate_status), also shown on Web access, says how it went: Self-signed, Fetching, the certificate’s name and expiry date, Wrong API key, Can’t reach Cert Warden or Expired.

Settings

The sidebar has the same pages as the Settings menu on the screen, with the same names; open one to jump between its sections. Passwords, PINs and keys stay hidden until you tap the eye, and empty text fields show an example of what goes in them. Switches and lists save as soon as you change them; text saves when you press Enter or leave the field.

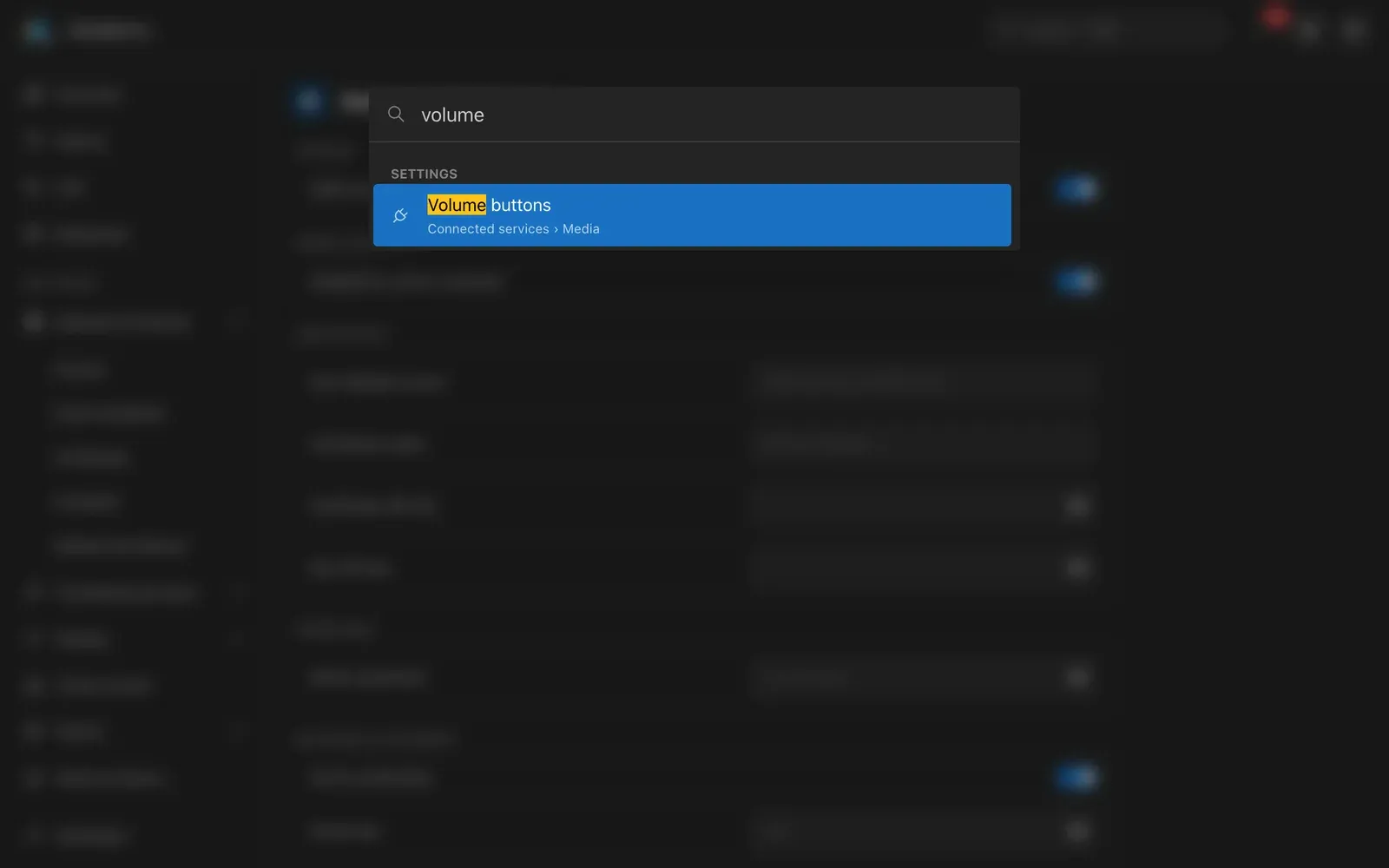

Search (⌘ K, or Ctrl K) finds any setting by name.

The pulse button at the top opens Events: settings and readings as they change, newest first. The screen button picks Light, Dark or Auto, which follows the computer.

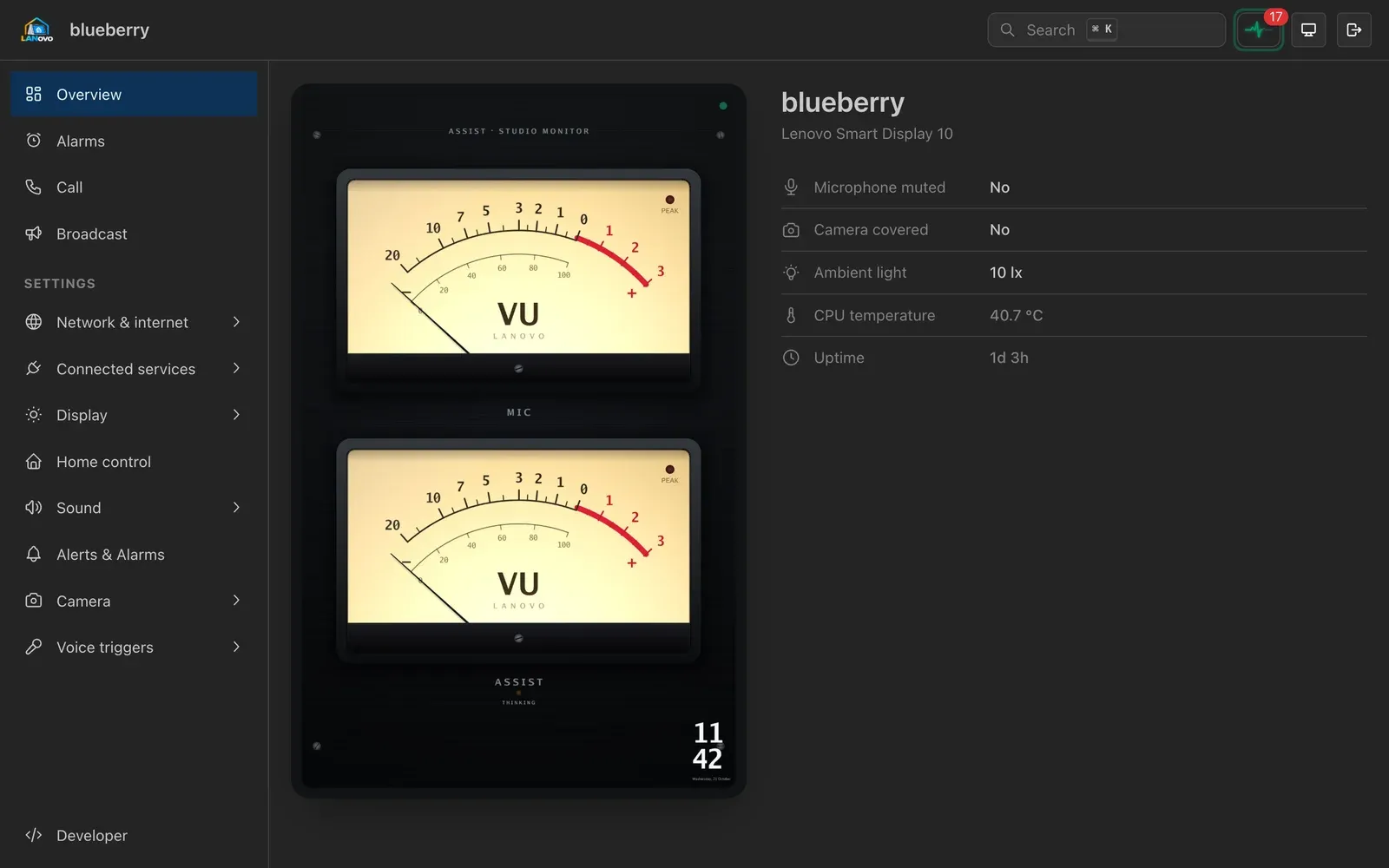

Overview

The device’s name and model, with what it’s doing: whether the microphone is muted and the camera covered, the light in the room, the call in progress, what’s playing, the temperature and how long it has been running. Each line appears when the device has it. Until Home Assistant has adopted the device, an Add to Home Assistant button opens Home Assistant’s ESPHome setup.

On an Echo Show, beside them is the screen as it looks right now, refreshed every three seconds while the page is open.

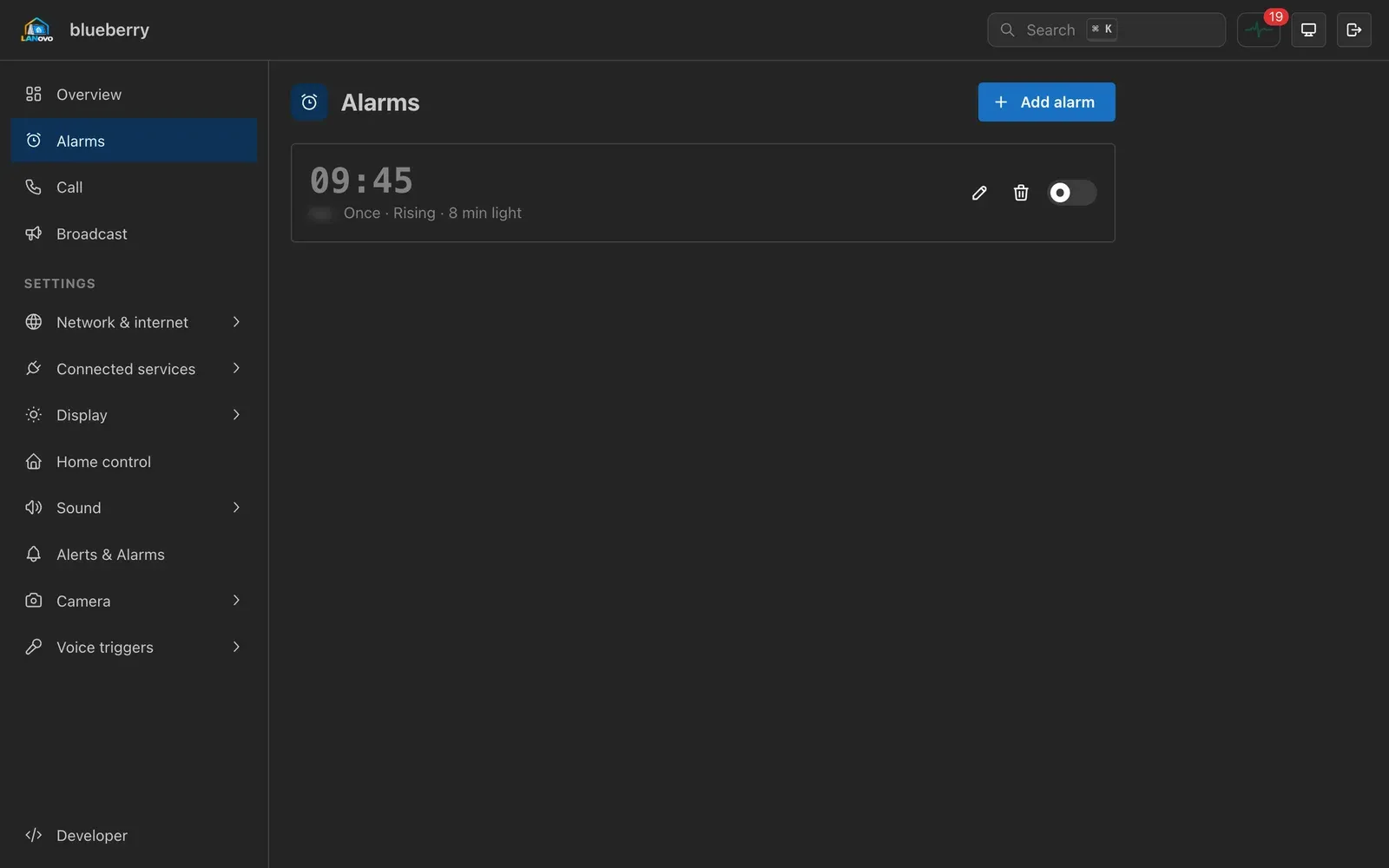

Alarms

The device’s alarms: add one, change it, turn it on or off, or delete it. Each has a time, the days it repeats, a sound, snooze, volume and a wake light.

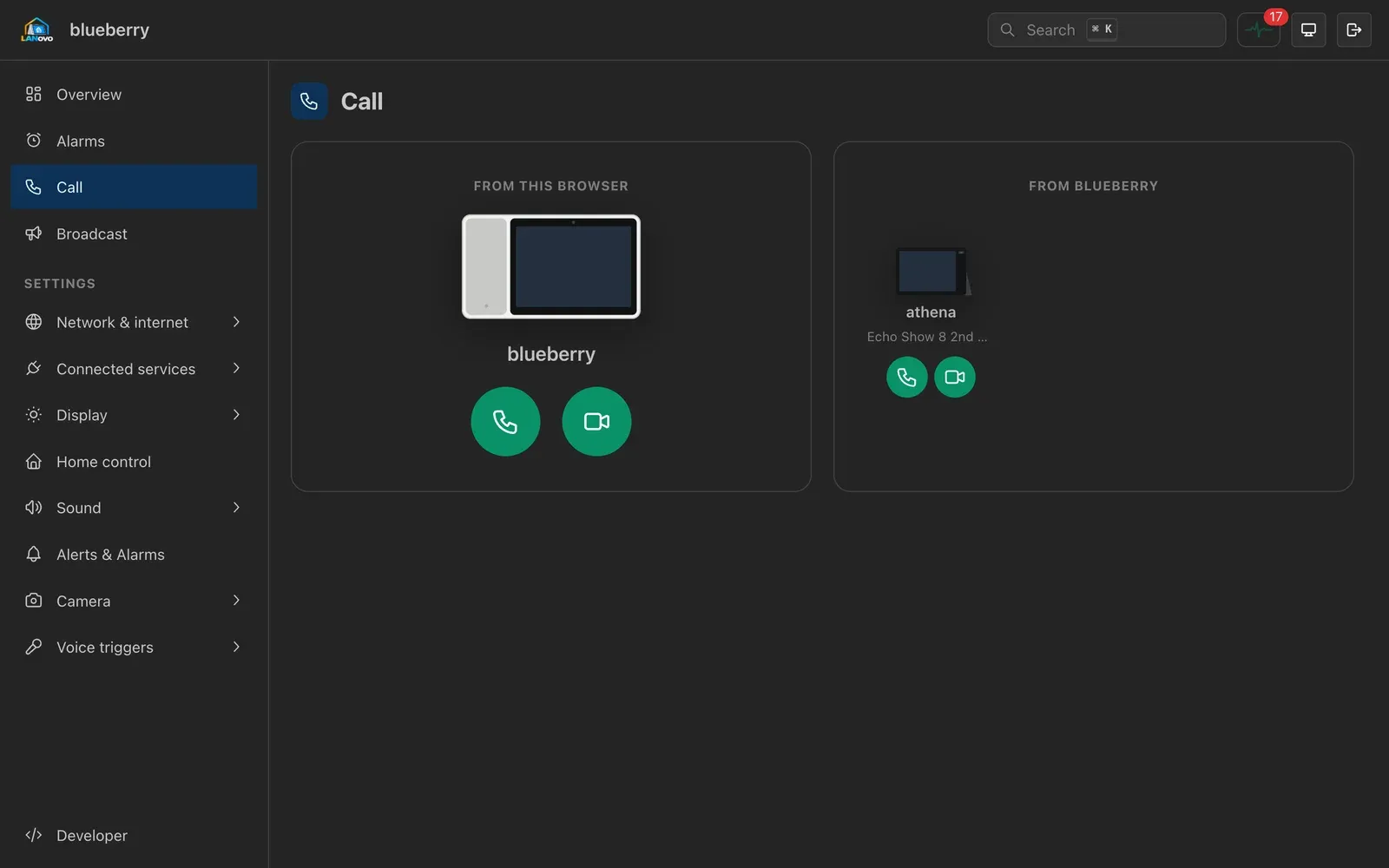

Call

From this browser calls the device, with audio or video, using the computer’s microphone and camera. The browser asks for them the first time. From the device lists the other devices in this home: call any of them from the device, as if you’d tapped it in Intercom. Answer, mute and hang up from the same page.

A call from the browser shows up on the device as API. It’s answered automatically only with Auto-answer on, and, when Answer from is Selected, Auto-answer API calls (call_answer_api) on as well.

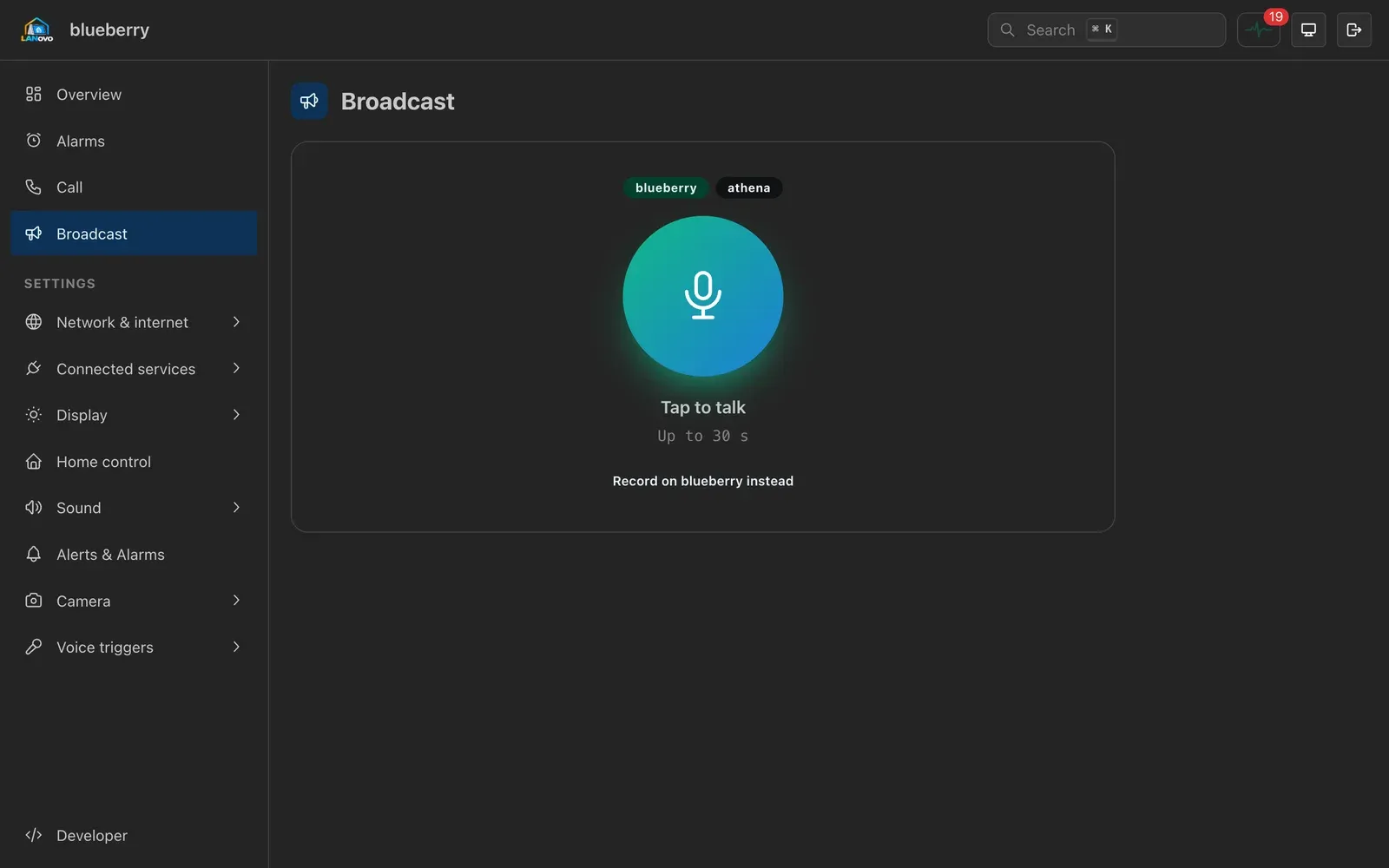

Broadcast

Tap the button, talk, and tap it again to send, up to 30 seconds. The message plays on this device and on every other device in this home, like a broadcast said to the assistant. Record on the device instead has you speak to the device after its tone; it sends when you stop talking.

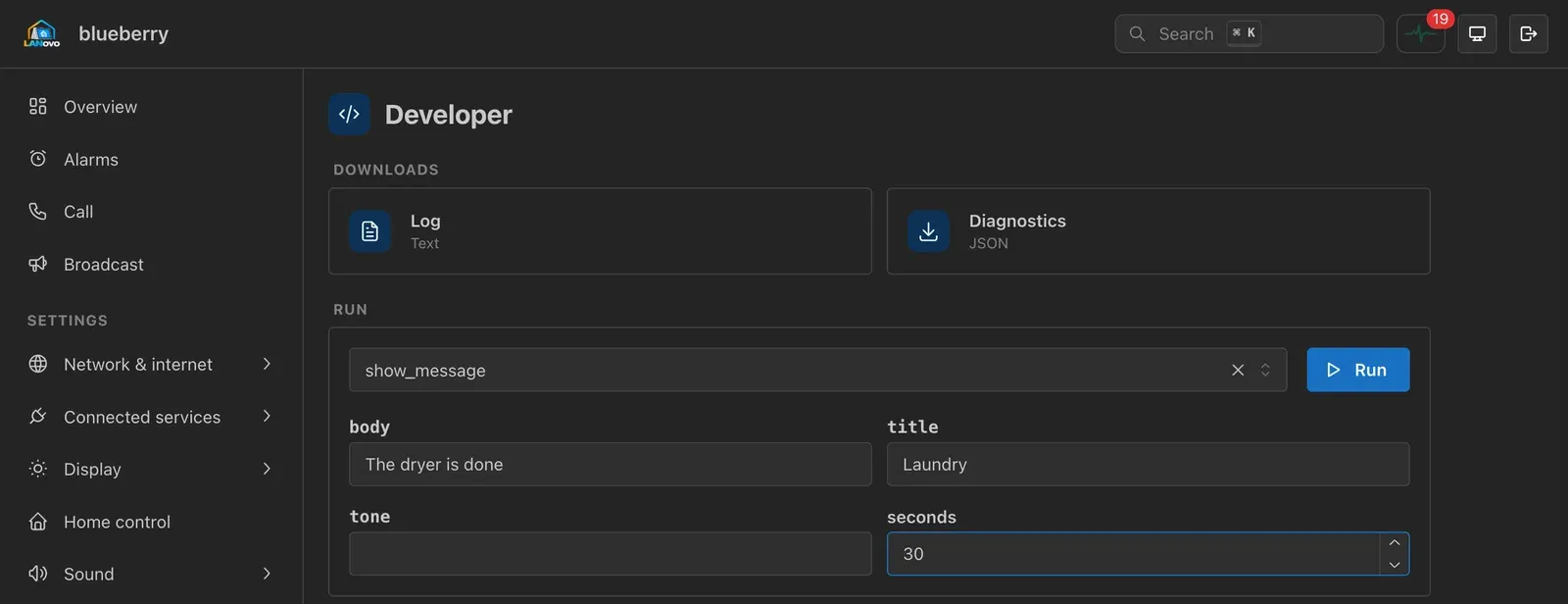

Developer

• Log and Diagnostics download the device’s log and a JSON file of every entity with its current value. Attach both to a bug report; check them for anything you’d rather not share first.
• Run calls any of the device’s actions, the same ones Home Assistant has: pick or type one, fill in its fields, and run it. An action that answers shows the answer below.
• Readings lists every sensor with its current value. Type in Filter to find one.

API

Everything the page does goes through /api/v1/ on the same address, so a script can do it too. Sign in one of two ways:

• Basic authentication on every request, with the admin password. The username is ignored.
• A token: POST /api/v1/login with {"password": "…"} answers {"token": "…"}. Send it as Authorization: Bearer …. It lasts 30 days. Changing the admin password ends every token.

Wrong passwords count toward the same lockout as the page. Add -k to curl while the device has its own certificate.

Request	Does
GET /api/v1/device	Name, model, board and version
GET /api/v1/settings	Every setting, grouped by domain, with its value
GET /api/v1/settings/{domain}/{name}	One setting
PUT /api/v1/settings/{domain}/{name}	Change it: {"value": "…"}, always a string. Answers with the setting as saved
GET /api/v1/entities	Every entity: id, kind and details such as its name and unit
GET /api/v1/states	Every entity’s current value
GET /api/v1/events	A WebSocket of values as they change
GET /api/v1/actions	The actions and their fields
POST /api/v1/actions/{name}	Run one: {"args": {…}}. Answers {"answer": …}
POST /api/v1/buttons/{id}	Press a button entity
GET /api/v1/screen	The screen as a JPEG (Echo Shows)
GET /api/v1/logs, GET /api/v1/diagnostics	The Log and Diagnostics downloads

The domain and name are the ones GET /api/v1/settings lists, like screen and backlight. Values are written the way it shows them: on or off for a switch, a number as text, and a choice’s id rather than its label.

To put a message on the screen:

curl -k -u :PASSWORD -X POST https://192.168.1.50/api/v1/actions/show_message \
  -d '{"args": {"title": "Laundry", "body": "The dryer is done", "seconds": 30}}'

Caution

Anyone with the admin password can change every setting, call the device and run its actions. Keep the password to people you’d hand the device itself.
