Messages, timers and alarms

Messages

Section titled “Messages”

On the Echo Shows.

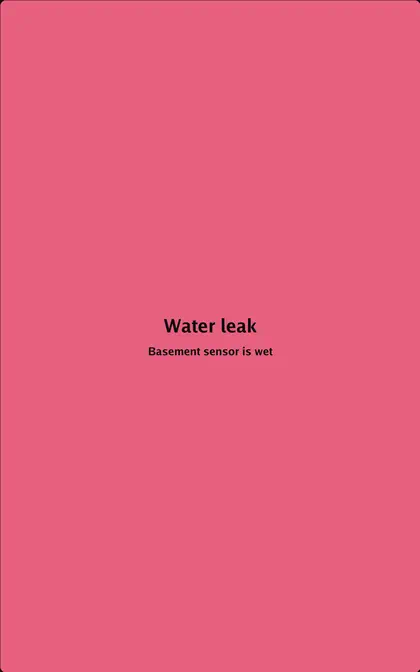

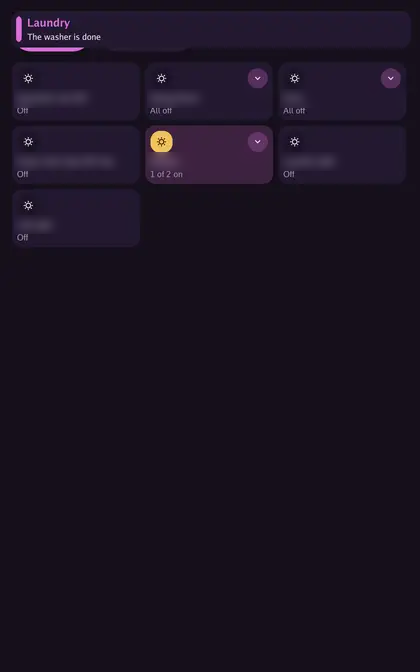

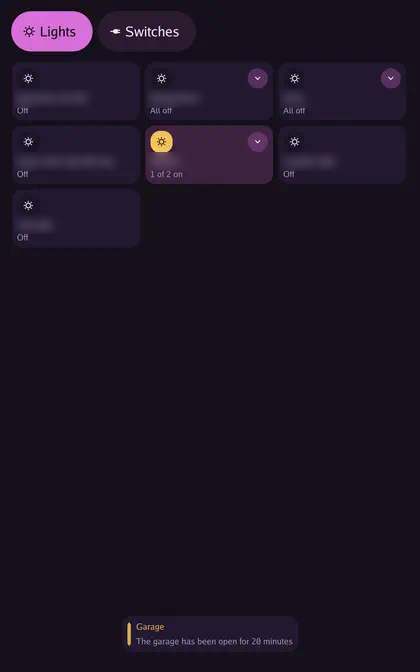

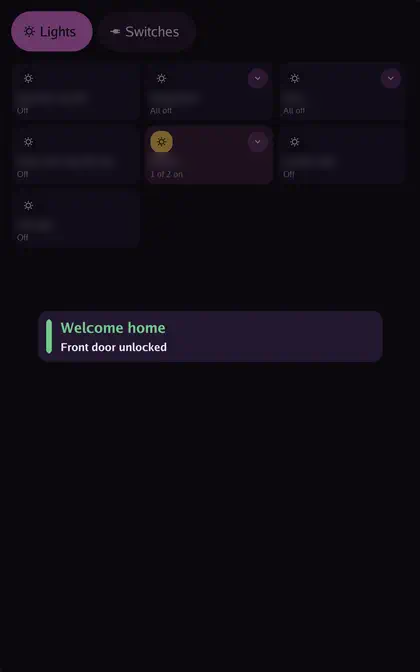

A message as a banner, a card, a toast and full screen, 1 of 4A message as a banner, a card, a toast and full screen, 2 of 4A message as a banner, a card, a toast and full screen, 3 of 4A message as a banner, a card, a toast and full screen, 4 of 4

Use the device’s show message action:

action: esphome.kitchen_show_message
data:
  title: Laundry
  body: The washer is done
  tone: info
  seconds: 30
Field
body Required
title Optional
tone info, success, warning or alert: color and chime
seconds Default 15, up to an hour

A new message replaces the current one. Tap to dismiss, or use the clear message action. The action name comes from the device’s name: a device named Kitchen has esphome.kitchen_show_message.

Alert styles and chimes

Section titled “Alert styles and chimes”

Settings → Alerts & Alarms:

  • Alert style: Banner, Card, Toast or Full screen
  • Info, Success, Warning and Alert chime: a sound for each tone, a custom tone, or none

Timers

Section titled “Timers”

Timers set by voice ring on every device, and on an Echo Show they show on screen. Settings → Alerts & Alarms → Timer style:

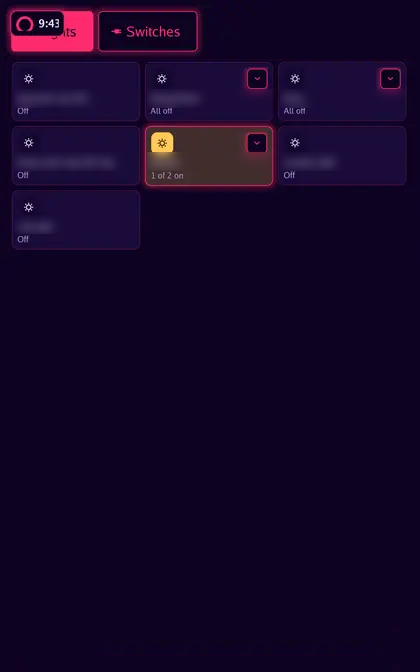

A timer as a bar, a banner, a corner badge, a dial, the clock face and full screen, 1 of 6A timer as a bar, a banner, a corner badge, a dial, the clock face and full screen, 2 of 6A timer as a bar, a banner, a corner badge, a dial, the clock face and full screen, 3 of 6A timer as a bar, a banner, a corner badge, a dial, the clock face and full screen, 4 of 6A timer as a bar, a banner, a corner badge, a dial, the clock face and full screen, 5 of 6A timer as a bar, a banner, a corner badge, a dial, the clock face and full screen, 6 of 6
Style

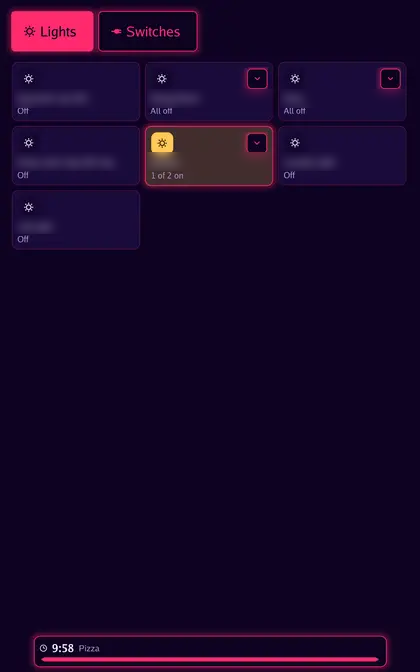

Bar Progress bar at the bottom

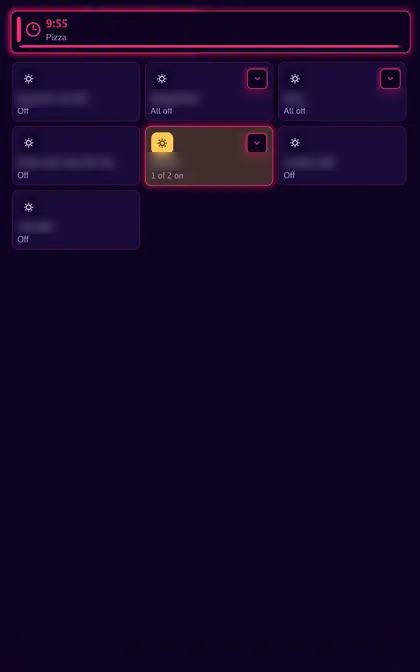

Banner Strip at the top
Corner Badge in the corner

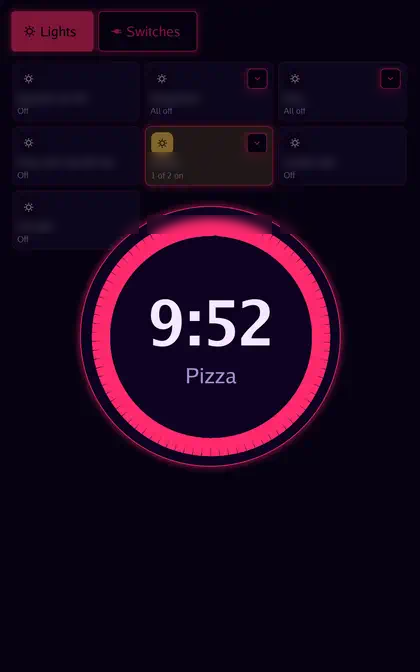

Dial Ring

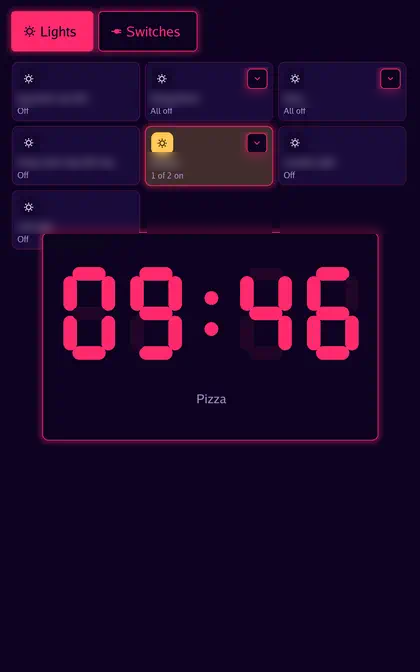

Clock face Countdown in the clock face

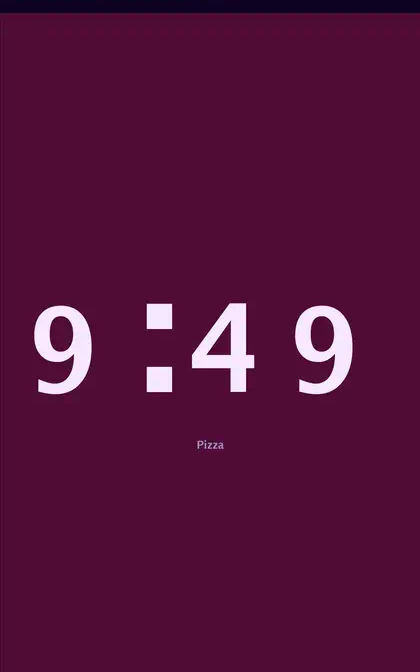

Full screen

A finished timer rings until stopped, up to Timer rings for (1, 5, 15 or 30 minutes, default 15). Timer sound sets the ring. Stop it by saying “stop”, tapping the screen, or tapping the Echo Dot’s action button.

The Timers sensor in Home Assistant lists running timers.

Alarms

Section titled “Alarms”

On an Echo Show, open Alarms from the Apps screen to add one. On any device, including the Echo Dot, set them from Home Assistant with the actions below. Each alarm has:

Field
Name and time
Repeat Once, Every day, Weekdays, Weekends, or chosen days
Sound Any chime or custom tone
Snooze Minutes per snooze, up to 60
Volume Steady, Gentle (ramps up from quiet) or Silent
Wake light Minutes before the alarm to start brightening the screen, up to 30 (Echo Show)

The wake light’s color is Settings → Alerts & Alarms → Wake light: Sunrise, White or Ember. An alarm rings for Timer rings for.

To stop a ringing alarm, tap Stop on an Echo Show, tap the action button on an Echo Dot, or say “stop”. To snooze, tap Snooze on the screen or hold the Echo Dot’s action button.

From Home Assistant

Section titled “From Home Assistant”
action: esphome.kitchen_alarm_set
data:
  name: Weekdays
  time: "06:45"
  days: mon,tue,wed,thu,fri
  enabled: true
  sound: rise
  snooze_minutes: 9
  volume: gentle
  ramp_seconds: 60
  light_minutes: 10
Field Value
time HH:MM, 24-hour
days Day names separated by commas or spaces (sun … sat, or longer, like monday). Empty rings once
sound A chime (chirp, ding, rise, timer, trouble) or a custom tone’s key
volume static, gentle or silent
ramp_seconds How long gentle takes to reach full volume, 15–300
snooze_minutes 0–60
light_minutes Wake light lead, 0–30
id Leave out to add an alarm; pass an existing id to change it
Action
alarm_list The alarms and their ids
alarm_set Add an alarm, or change one by passing its id
alarm_enable Turn one on or off
alarm_delete Remove one
alarm_stop, alarm_snooze Stop or snooze the one ringing

When an alarm rings, is snoozed or stops, Home Assistant gets the events esphome.alarm_ringing, esphome.alarm_snoozed and esphome.alarm_stopped, for automations such as turning on the lights.
