The EchoLocal integration

The Echo works in Home Assistant without this. The integration is an optional companion that adds:

• A card for each Echo, with its settings and controls laid out by area
• A dashboard in the sidebar with every Echo, plus wake words, activity, groups, tones and health
• Fleet, which compares every device’s settings with one of them and copies settings across
• What the ESPHome integration can’t do on its own: a shared wake word library, custom tones and recordings of each turn
• Voice actions such as “call the kitchen” and “broadcast dinner is ready”, and live video in the Echo Show’s Cameras app
• Calls to an Echo Show from a dashboard

Install

Needs Home Assistant 2026.8 or newer.

1. In HACS, open ⋮ → Custom repositories, add https://github.com/ygelfand/echolocal-hacs with the category Integration.



2. Install EchoLocal, then restart Home Assistant.

3. Settings → Devices & services → Add integration → EchoLocal.

Its only option is Show the EchoLocal dashboard in the sidebar. Change it later from the integration’s Configure.

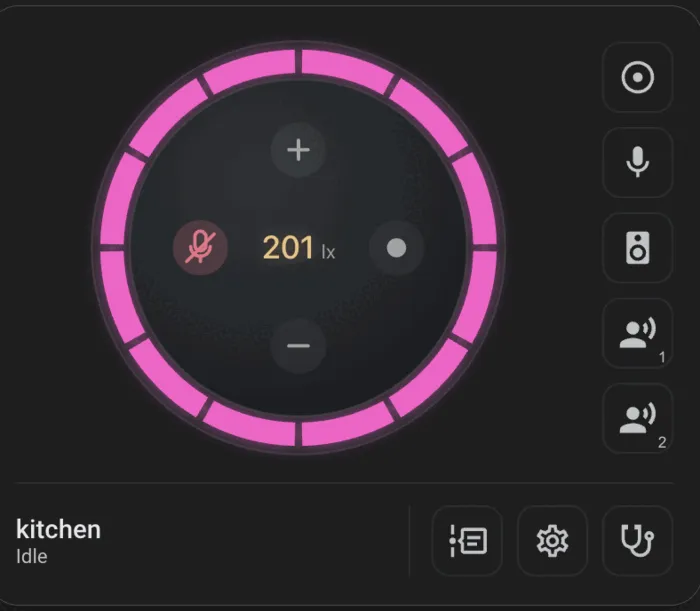

The card

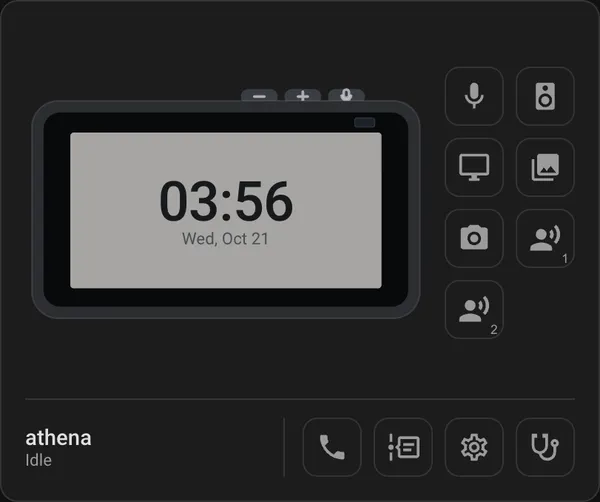

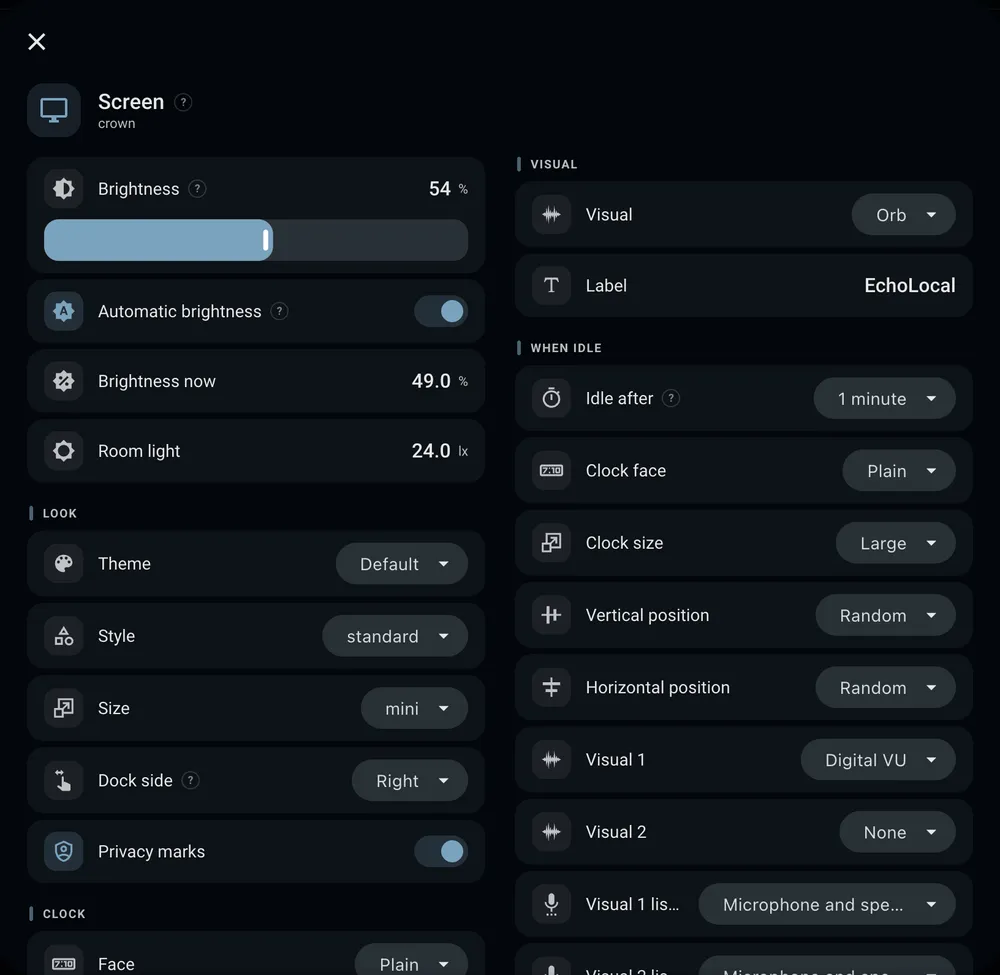

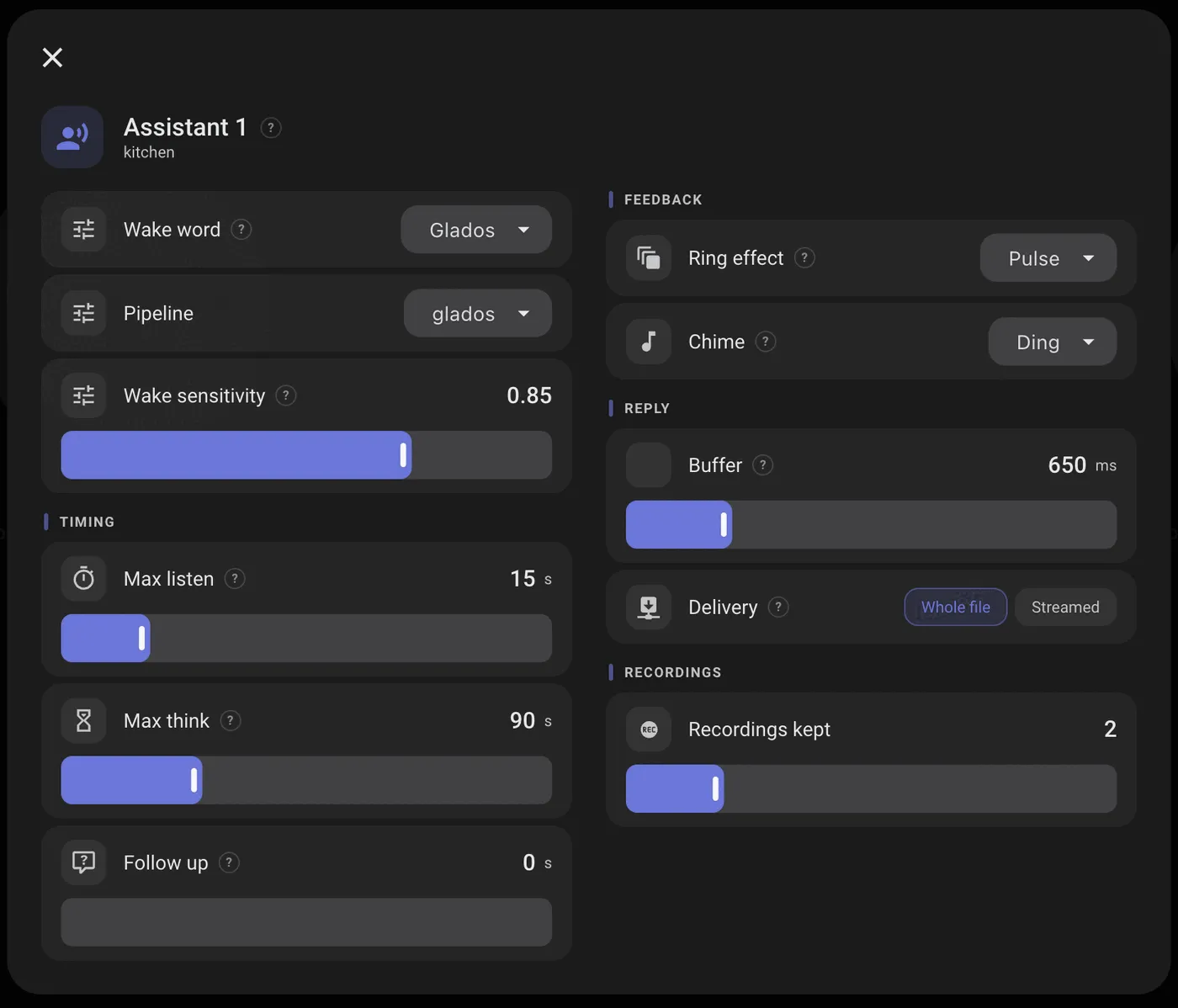

Each card is drawn like its device: a Dot from above with its ring, or a Show with its screen. The buttons under it open a panel of settings for each area: microphone, playback, ring, screen, posters, camera and each assistant. Every setting has a ? beside it that says what it does. On an Echo Show, the phone button calls it.

Add one to any dashboard: Edit dashboard → Add card → EchoLocal Satellite, then pick the device.

type: custom:echolocal-satellite-card
device_id: 0123456789abcdef0123456789abcdef
shell: auto
help: true

Option	Does
device_id	The Echo
shell	Echo Dot only: auto (the color the Dot reports, grey if unknown), black, white or grey. An Echo Show is always drawn charcoal
help	Show the ? beside each setting. On by default

The dashboard

EchoLocal in the sidebar.

Home

Every Echo’s card on one page, or one section per group. Each group’s bar has Mute all, Ring and Stop, which act on every device in it. If only some of them take it, the bar says how many did.

Activity

Every turn a device reports: what woke it, what it heard, what it answered, and how long listening, thinking and replying took. Where a recording was kept, play back what the microphones sent. How many recordings each assistant keeps is in its panel on the card.

Wake words

Which device listens for what, and the wake word library every device can use. Drop a microWakeWord .tflite file onto the tab to add it; it’s offered to every Echo straight away, with no restart. The library lives in Home Assistant’s config/custom_wake_words/.

Groups

A table of devices against groups. Tick a box to put a device in a group, rename a group in its heading, or add and delete groups. Groups are Home Assistant labels, so they also work in automations and in Home Assistant’s own filters.

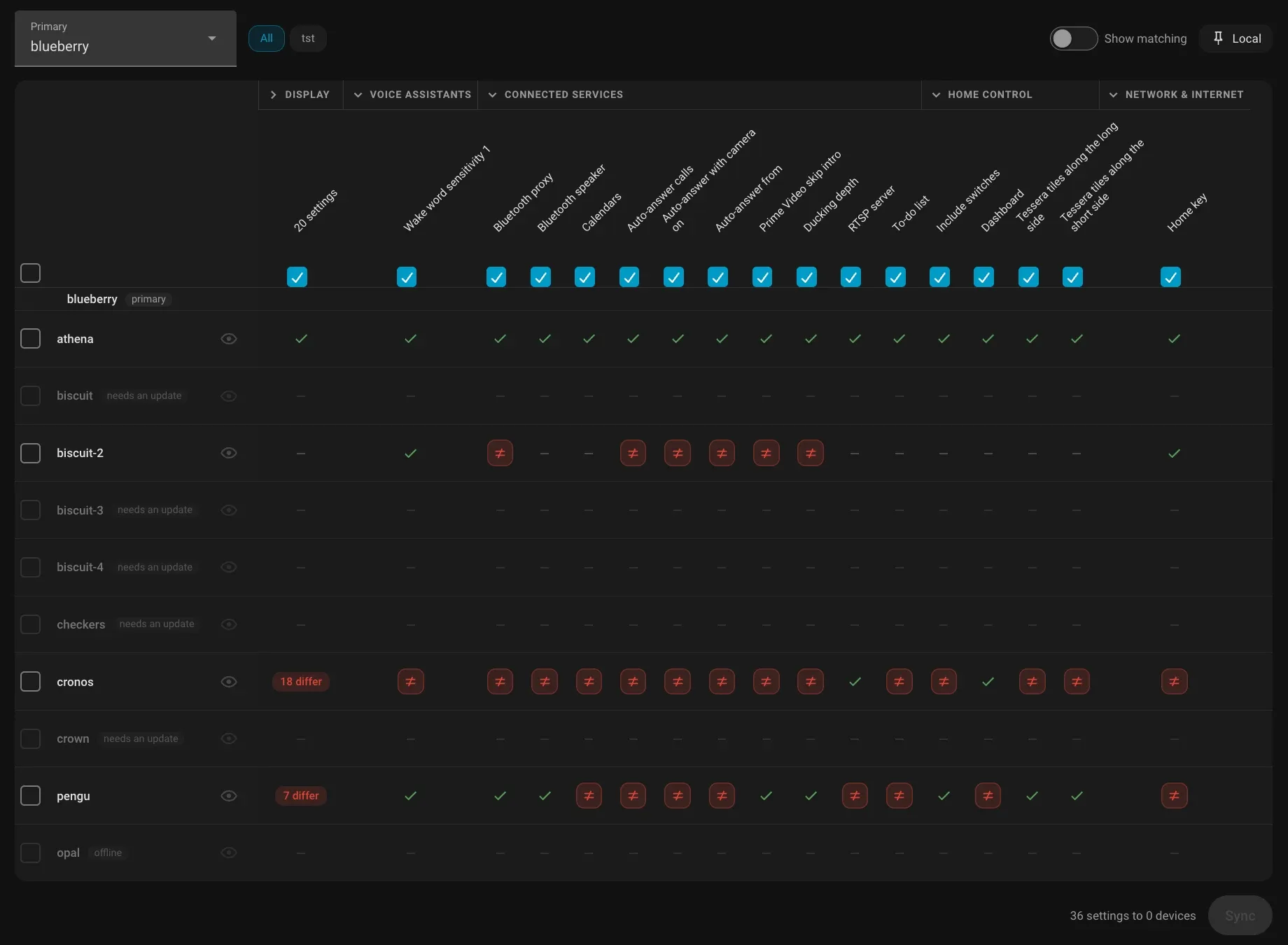

Fleet

Compare every device’s settings with one of them, and copy settings from it to the others. Only administrators see this tab. EchoLocal devices and LANovo devices appear in the same table; a setting one of them doesn’t have shows as not applying.

• Primary is the device the others are compared with.
• Each setting is a column, grouped by section, and each device a row. A cell says whether the device matches the primary, differs from it, or doesn’t have that setting, such as a screen setting on an Echo Dot.
• With Show matching off, only the settings that differ on some device are shown.
• Collapse a section to a single column that counts how many settings differ. Its checkbox ticks or clears the whole section.
• The pills above the table limit it to the devices in one group.
• The eye beside a device leaves it out of the comparison until the page is reloaded.
• Local is a list of settings that are never synced, for ones you want to keep different on each device. Search it and tick a setting to add it.

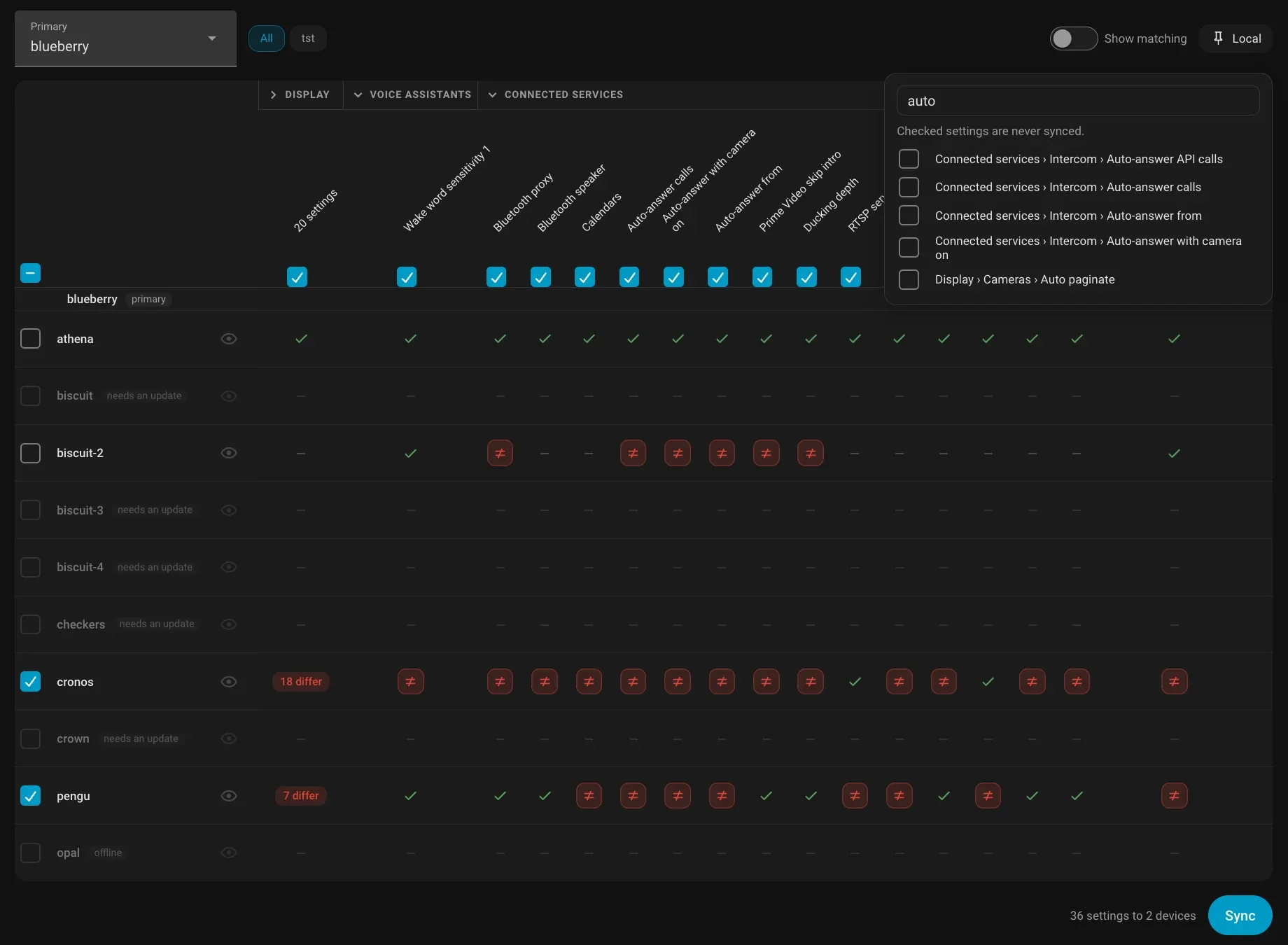

To copy, tick the settings and the devices, then press Sync. Each device’s row then says how many settings changed, or what went wrong.

Each assistant’s pipeline and wake word are compared and set through Home Assistant’s own selects. A device on firmware from before Fleet shows needs an update and can’t be synced; an offline one is greyed out.

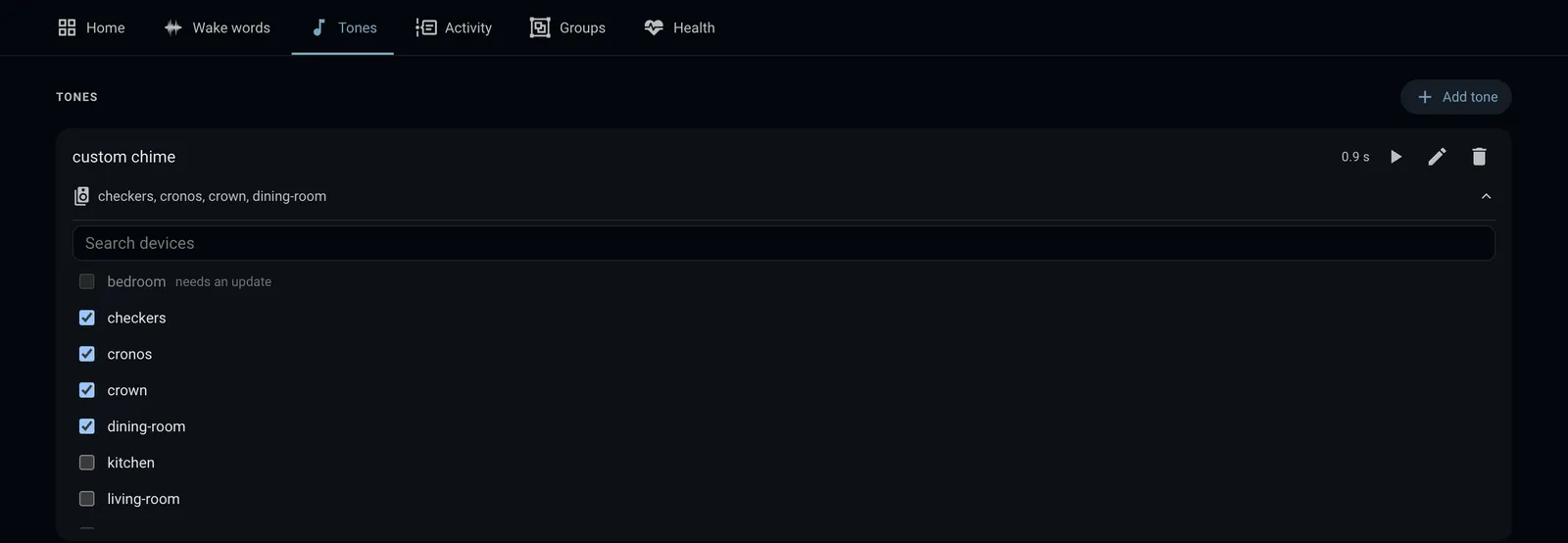

Tones

Upload a sound, tidy it up, and send it to devices. It then shows up in their sound pickers for chimes, timers, alarms, rings and the wake tone. See Custom tones.

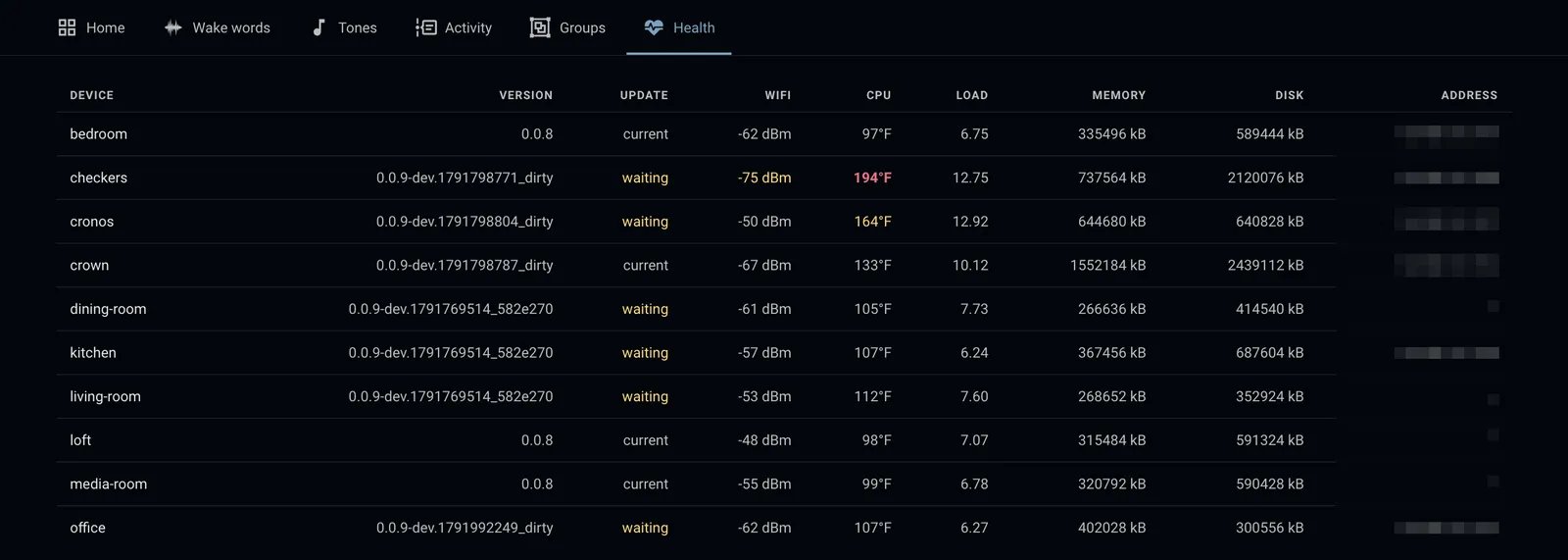

Health

One row per device: version, update status, Wi‑Fi signal, CPU temperature, load, memory, disk and address.

Actions

Action	Does
echolocal.assign_tone	Send a tone from the library to devices (tone, device_id)
echolocal.unassign_tone	Remove a tone from devices; it stays in the library

Note

Each Echo’s own actions, such as messages, alarms and timers, come from the ESPHome integration. See Messages, timers and alarms.
